The figures below are the reference values for the standard build of this model. The actual configuration is adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.

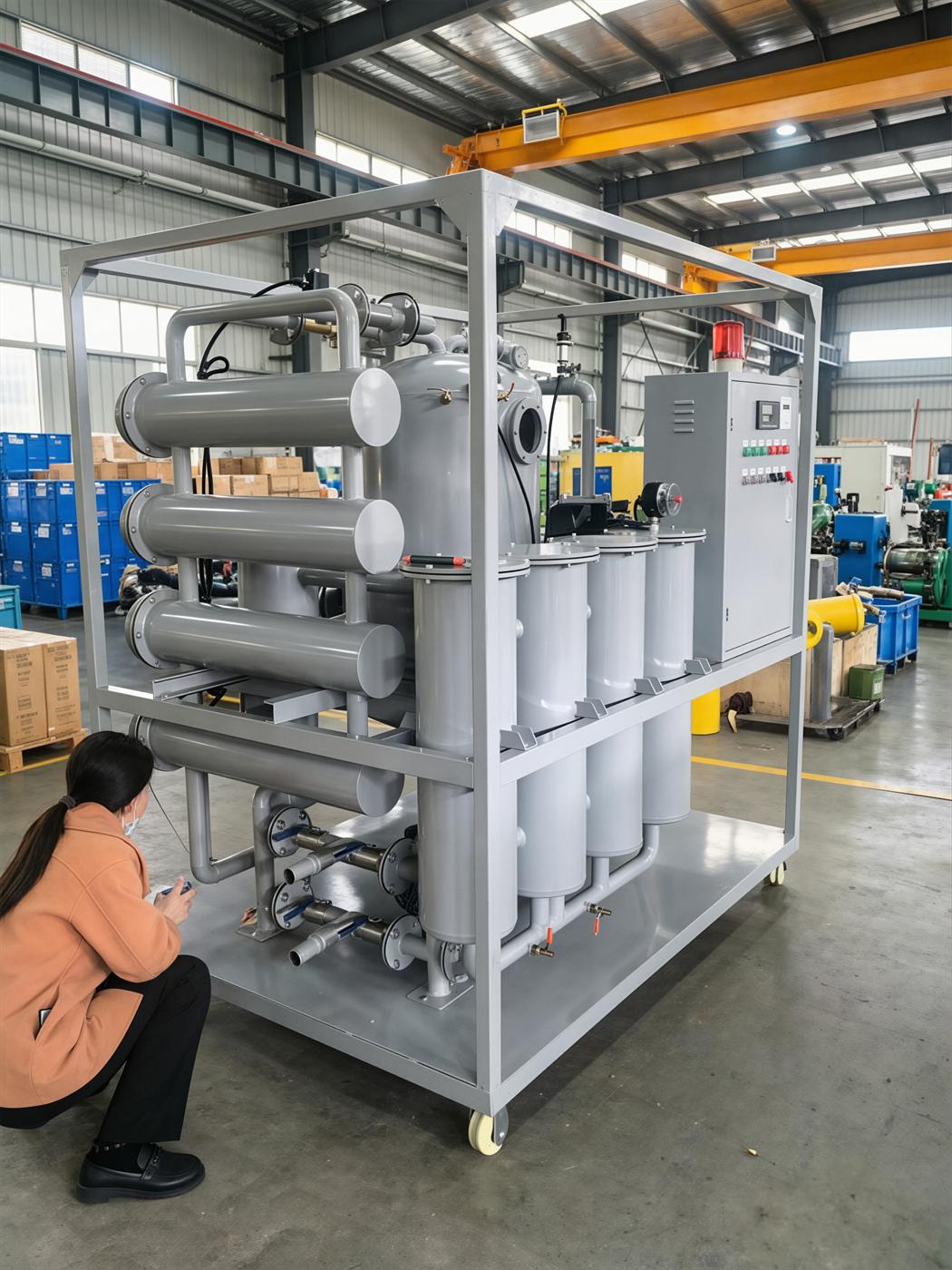

TYG-100 mobile vacuum oil purifier
A two-stage vacuum system on a mobile platform, with the same processing capacity as the fixed ZYD machines, for on-site maintenance of large equipment.
01Applications
For emergency oil treatment during on-site maintenance of large equipment such as transformers and switchgear, and for on-site purification of the oil systems of power plants. It suits temporary or emergency work where the equipment is spread out or the maintenance site is temporary.
Oils that need deep purification on site, such as transformer oil, instrument transformer oil, turbine oil and hydraulic oil.
Standard: high carbon steel; custom-built: 304 stainless steel

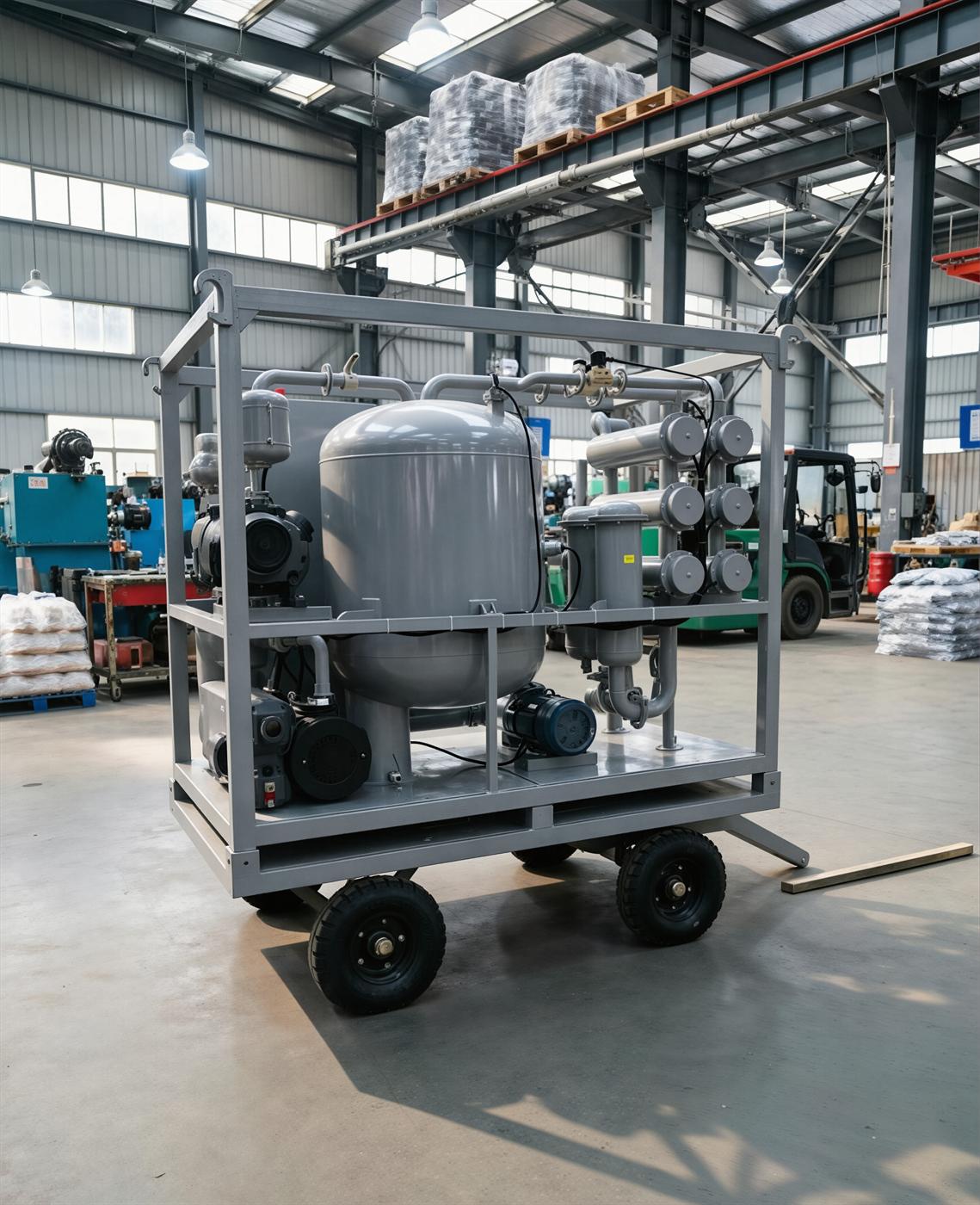

The ZYD two-stage vacuum flash evaporation process is transferred as a whole to a trailer chassis. The 6000 L/h processing capacity is the same as that of a fixed station, so the treatment result on site stays consistent. The chassis frame is fitted with road wheels and levelling legs, which makes transport quick and positioning on site stable.
02Overview
A two-stage vacuum system on a mobile platform, with the same processing capacity as the fixed ZYD machines, for on-site maintenance of large equipment.
Each machine is designed and built to the company standard and goes through a no-load and a full-load run test before it leaves the works. The test record and the certificate of conformity travel with the machine. Yanneng can work out the right configuration and the treatment line from the oil analysis report and the site conditions you provide.
03Main features
04Technical data
| Flow rate | 6000 L/h |
|---|---|
| Working vacuum | -0.08 ~ -0.0999 MPa |
| Ultimate vacuum | ≤5 Pa |
| Filtration accuracy | ≤1 μm |
| Water content | ≤3 ppm |
| Cleanliness | NAS class 5 (NAS 1638) |
| Mobile configuration | Trailer chassis |
| Power supply | Three-phase 380V / 50Hz |
The figures above are the reference values for the standard build. The actual configuration can be adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.
05Optional items
- Optional PLC intelligent control with touchscreen operation
- Optional online moisture detector
- Optional rain canopy and fully enclosed outer cover
- Optional trailer chassis (single axle or tandem axle)
06Common questions
A fixed station suits large oil volumes and long-term continuous centralised treatment; a mobile unit suits temporary or emergency treatment where the equipment is spread out or the maintenance site is temporary. The two are often used together.
07Related models
Need a quotation, a delivery date or a custom build?
Tell us the conditions this machine has to work in - the oil type, the throughput, the power supply and where it will be installed - and we will come back within one working day with a configuration recommendation and a quotation.
