The figures below are the reference values for the standard build of this model. The actual configuration is adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.

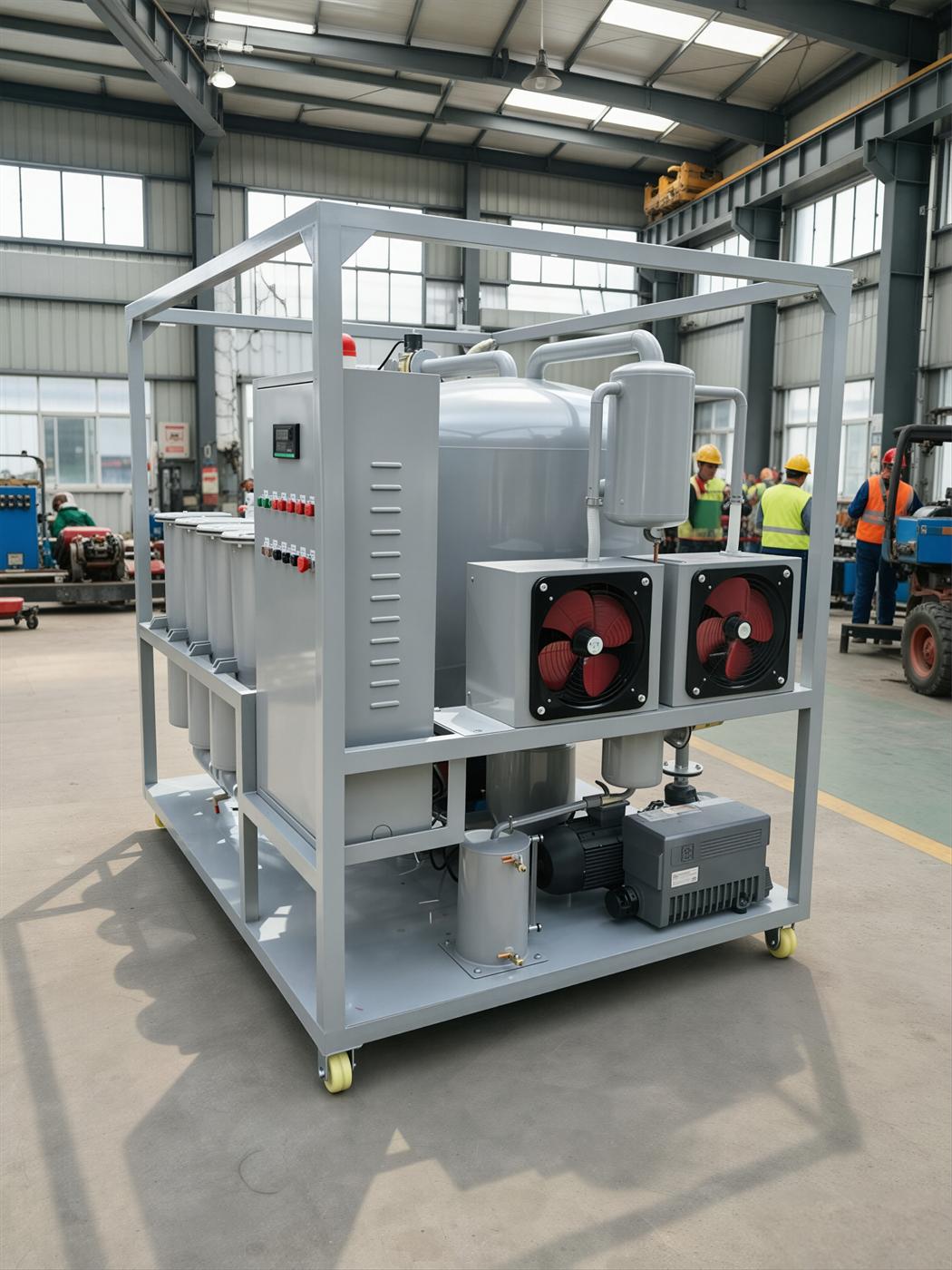

ZYD-100 two-stage vacuum oil purifier
Dedicated deep purification for insulating oils such as transformer oil and instrument transformer oil, with two-stage vacuum flash evaporation under negative pressure, giving a water content of ≤3 ppm after treatment.
01Applications
For power plants, substations, power supply authorities, the transformer industry, metallurgy, petrochemicals, machinery, transport and railways, in particular for on-site maintenance of large substation transformers, and for deep purification of new oil, imported oil, instrument transformer oil and extra-high-voltage transformer oil. It can also be used for vacuum filling and vacuum drying of transformers.
Insulating oils such as new oil, imported oil, instrument transformer oil, extra-high-voltage transformer oil, capacitor oil, switchgear oil and reactor oil.
Standard: high carbon steel; custom-built: 304 stainless steel
Oil enters the machine through the oil inlet and first passes through the 150-250-50 coarse filter element, which intercepts large particles. A screw oil transfer pump then feeds the oil into the three-dimensional evaporation chamber. Far-infrared uniform-flow heating holds the oil temperature inside the set range, and the atomiser spreads the oil into a large-area oil film, so the moisture vaporises and separates out under negative pressure. The evaporated water vapour and the dissolved gases in the oil are drawn off by the vacuum pump set; after the oil and gas are separated, the dry oil returns to the clean oil tank and is discharged after passing through the 150-500-5 fine filter element.
02Overview
Dedicated deep purification for insulating oils such as transformer oil and instrument transformer oil, with two-stage vacuum flash evaporation under negative pressure, giving a water content of ≤3 ppm after treatment.
Each machine is designed and built to the company standard and goes through a no-load and a full-load run test before it leaves the works. The test record and the certificate of conformity travel with the machine. Yanneng can work out the right configuration and the treatment line from the oil analysis report and the site conditions you provide.
03Main features
04Technical data
| Flow rate | 6000 L/h |
|---|---|
| Working vacuum | -0.08 ~ -0.0999 MPa |
| Ultimate vacuum | ≤5 Pa |
| Filtration accuracy | ≤1 μm |
| Water content | ≤3 ppm (GB/T 7600) |
| Cleanliness | NAS class 5 (NAS 1638) |
| Gas content | ≤0.01% (GB/T 423) |
| Breakdown voltage | ≥65 kV (GB/T 507) |
| Total power | 72 + 5 kW |
| Power supply | Three-phase 380V / 50Hz |
| Dimensions | 1200 × 1400 × 1800 mm |
| Equipment weight | approx. 720 kg |
The figures above are the reference values for the standard build. The actual configuration can be adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.
05Standard configuration
| Item | Quantity | Brand |
|---|---|---|
| Vacuum pump set | 1 set | X-100 |
| Roots pump set | 1 set | JRP-500 |
| Three-dimensional evaporation chamber | 1 set | Chongqing Yanneng |
| Atomiser | 1 set | Chongqing Yanneng |
| Screw oil transfer pump | 1 set | Matched low-speed motor |
| Coarse filter element | 1 pc | Imported HPM |
| Fine filter element | 4 sets | Imported HPM |
| Infrared foam removal device | 1 set | Autonics (Korea) |
| Control cabinet | 1 set | CHINT electrical components |
06Optional items
- Optional PLC intelligent control with touchscreen operation
- Optional online moisture detector
- Optional frequency converter, so the flow rate can be selected as required
- Optional flow meter with a totalising function
- The unit can be built as mobile, stationary, trailer-mounted, fully enclosed, canopy-covered or open type
07Common questions
Mainly for the purification of insulating oils such as transformer oil, instrument transformer oil, capacitor oil and cable oil, and also for vacuum drying and vacuum filling when a transformer is installed or maintained.
The water content can be reduced to below 3 ppm, the filtration accuracy is ≤1 μm, the cleanliness reaches NAS 1638 class 5, the gas content is ≤0.01% and the breakdown voltage is ≥65 kV, which meets the requirements of GB/T 7600, GB/T 511, GB/T 423, GB/T 507 and other national standards.
Yes. The ZYD-100 integrates oil extraction, oil filling, hot oil circulation and transformer vacuuming, so one machine covers the different on-site operations that arise.
