The figures below are the reference values for the standard build of this model. The actual configuration is adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.

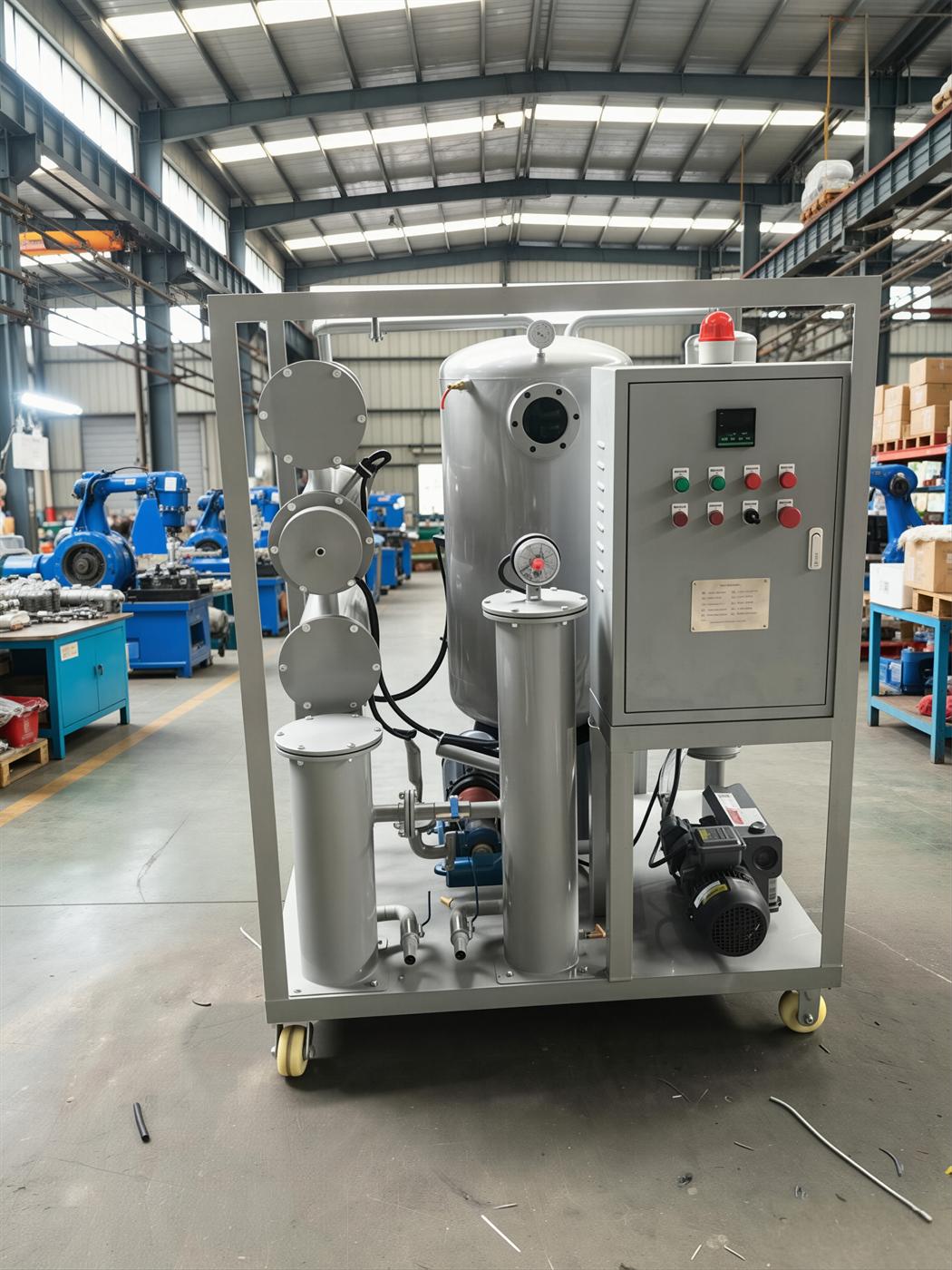

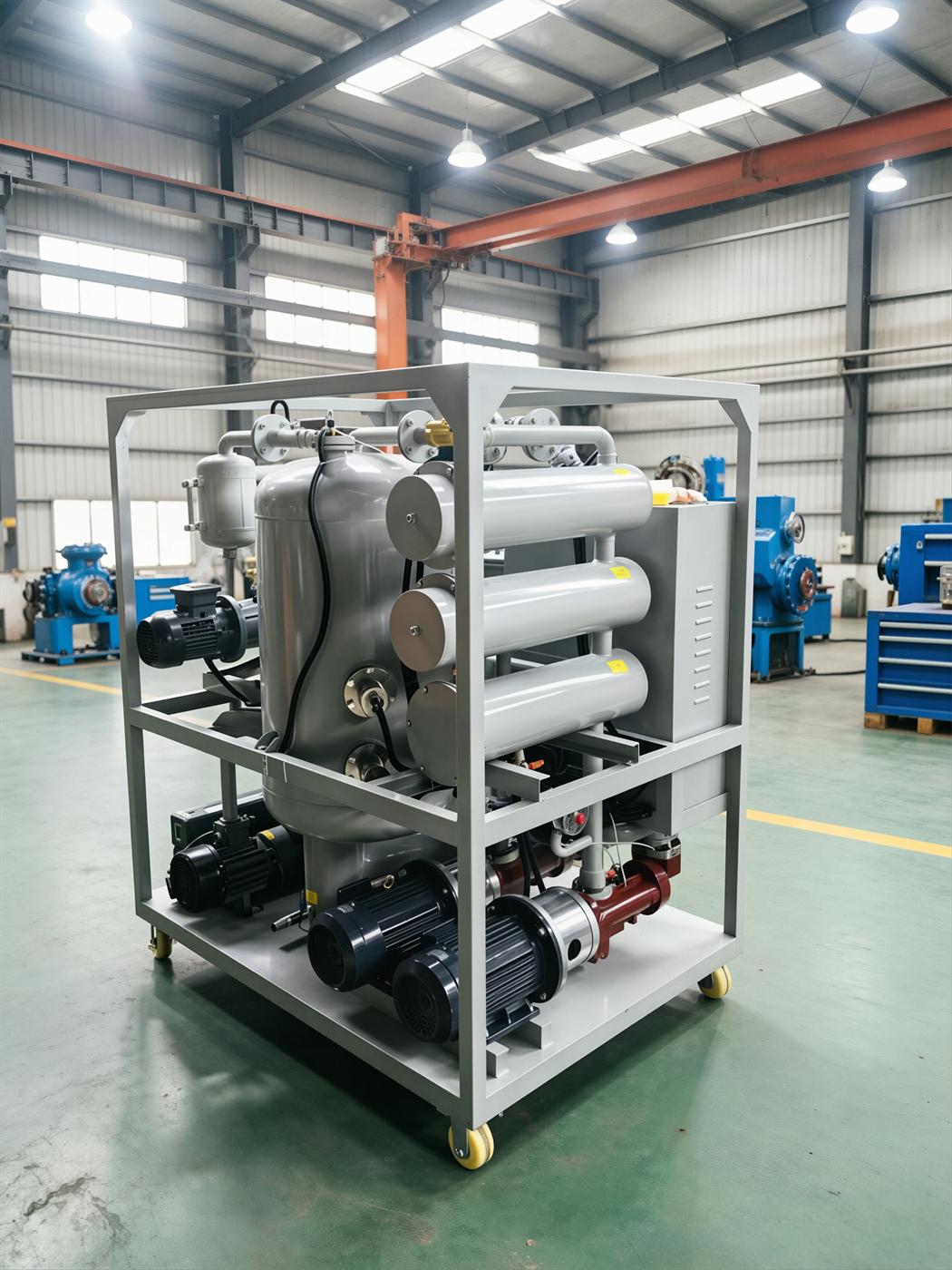

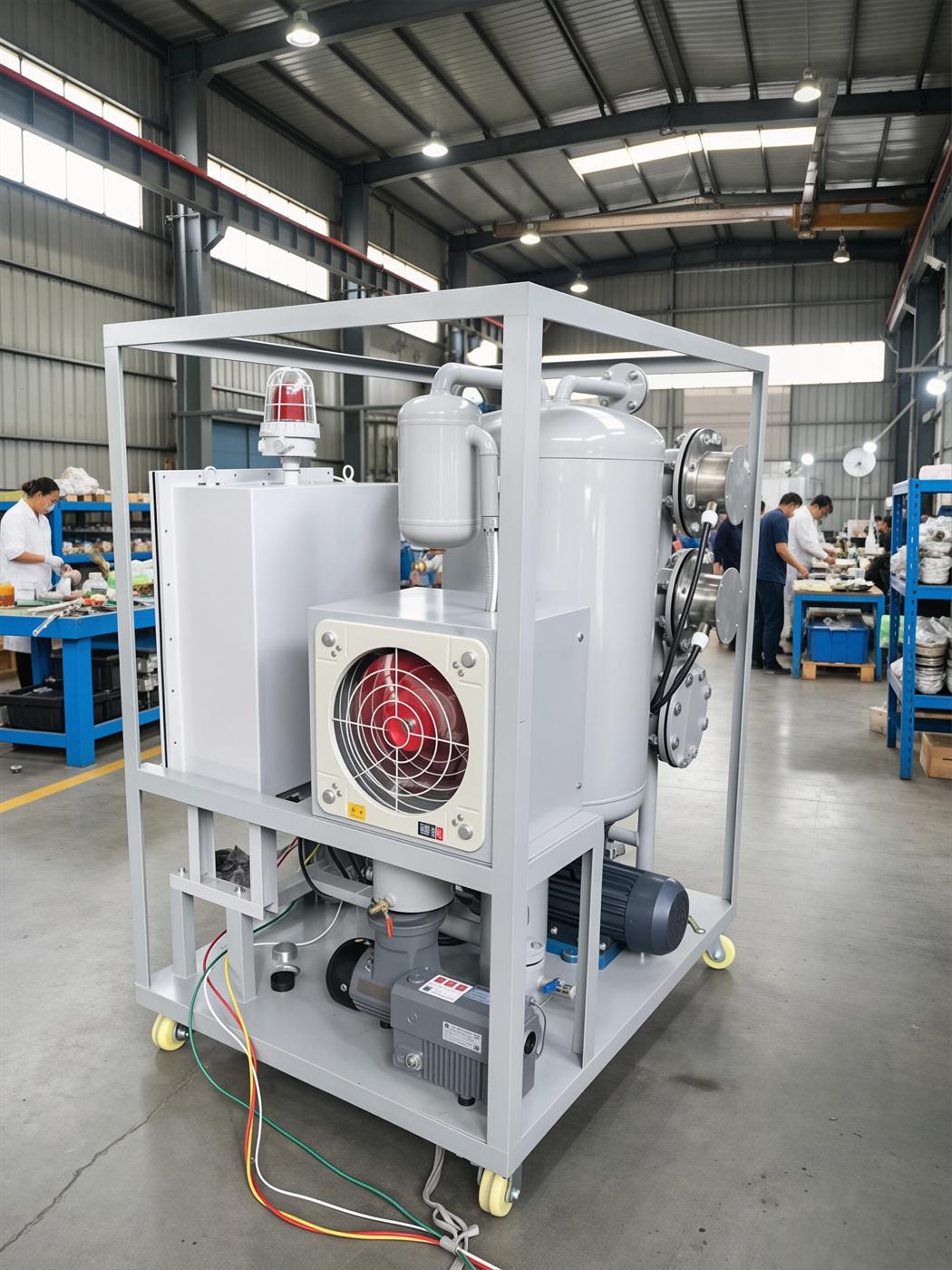

TYA-50 heated vacuum oil purifier
Fast purification and regeneration unit for hydraulic oil, machine oil and cooling oil, with automatic backwash of the filter elements, so the machine can run without constant attendance.
01Applications
Purification and regeneration of hydraulic oil, machine oil, cooling oil and lubricating oil in the oil field, mining, metallurgy, power generation, transport and manufacturing industries, widely used for routine oil handling in oil stations and workshops.
Industrial oils such as hydraulic oil, machine oil, cooling oil, lubricating oil and turbine oil.
Standard: high carbon steel; custom-built: 304 stainless steel
A medium heat-absorbing condensing system heats the oil and feeds it into the three-dimensional evaporation structure; after the oil and water are separated, the condensate is recovered, which reduces oil loss. The filter is backwashed automatically and condensate water is discharged during operation, so no attendant is required.
02Overview
Fast purification and regeneration unit for hydraulic oil, machine oil and cooling oil, with automatic backwash of the filter elements, so the machine can run without constant attendance.
Each machine is designed and built to the company standard and goes through a no-load and a full-load run test before it leaves the works. The test record and the certificate of conformity travel with the machine. Yanneng can work out the right configuration and the treatment line from the oil analysis report and the site conditions you provide.
03Main features
04Technical data
| Flow rate | 2000 L/h |
|---|---|
| Working vacuum | approx. -0.08 MPa |
| Filtration accuracy | ≤1 ~ 5 μm |
| Water content | ≤3 ppm |
| Control mode | Automatic / semi-automatic |
| Power supply | Three-phase 380V / 50Hz |
| Dimensions | 1500 × 800 × 1600 mm |
| Weight | approx. 480 kg |
The figures above are the reference values for the standard build. The actual configuration can be adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.
05Standard configuration
| Item | Quantity | Brand |
|---|---|---|
| Coarse filter element | 1 pc | 110-250-50 |
| Secondary filter element | 1 pc | 110-400-20 |
| Fine filter element | 1 pc | 110-600-5 |
| Oil transfer pump | 1 set | kcb55 |
| Oil transfer pump motor | 1 set | 6-1.1-B3 |
| Vacuum pump | 1 set | X-21 |
06Optional items
- Optional PLC intelligent control with touchscreen operation
- Optional online moisture detector
- Optional fully automatic or semi-automatic control mode
- The unit can be built as a mobile, stationary or trailer-mounted configuration
07Common questions
Mainly used for the purification and regeneration of industrial oils such as hydraulic oil, machine oil, cooling oil and lubricating oil, and widely applied in the oil field, mining, metallurgy, power generation, transport and manufacturing industries.
It is recommended to pre-filter with the JL series portable filtering and oil-filling cart to remove large particles thoroughly before the oil enters the TYA series vacuum degassing stage. This keeps the dehydration and degassing efficiency and avoids clogging the filter elements.
08Related models
