The figures below are the reference values for the standard build of this model. The actual configuration is adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.

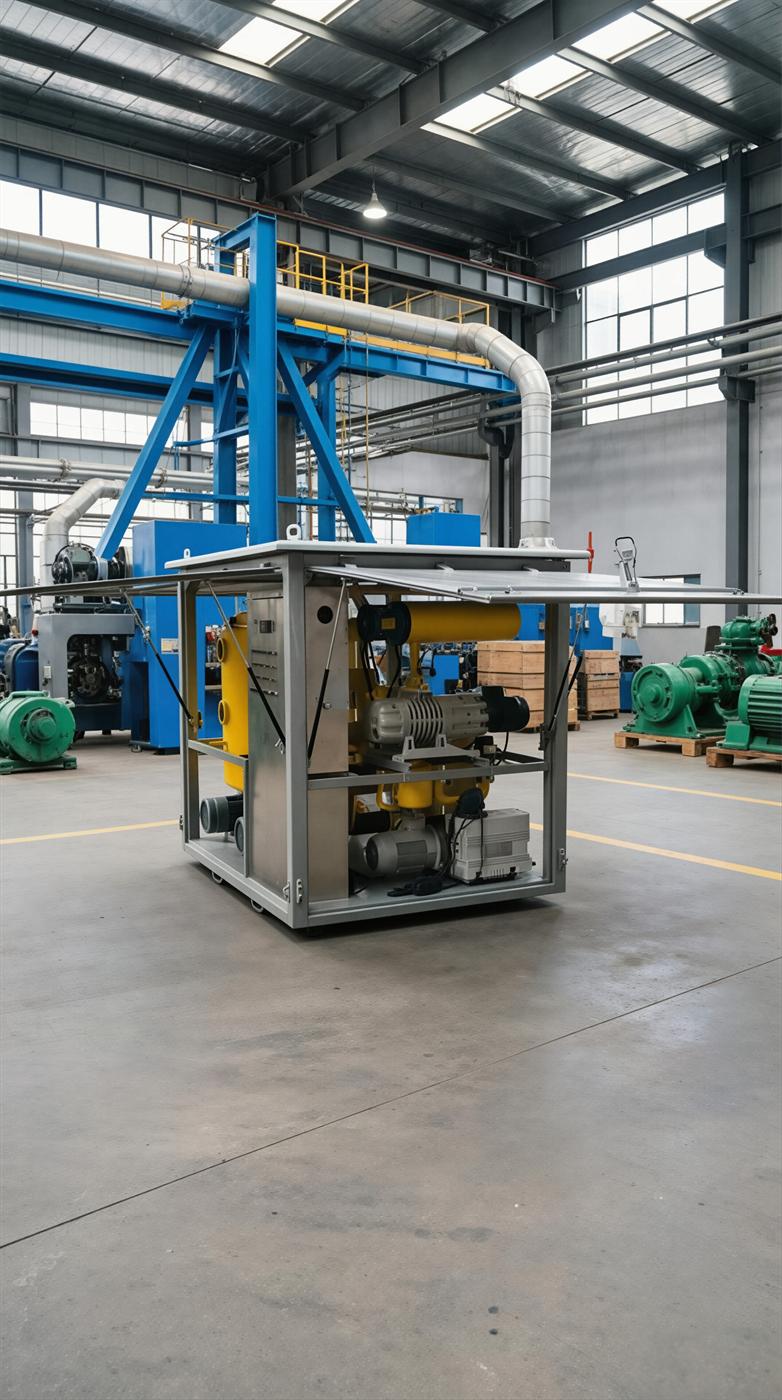

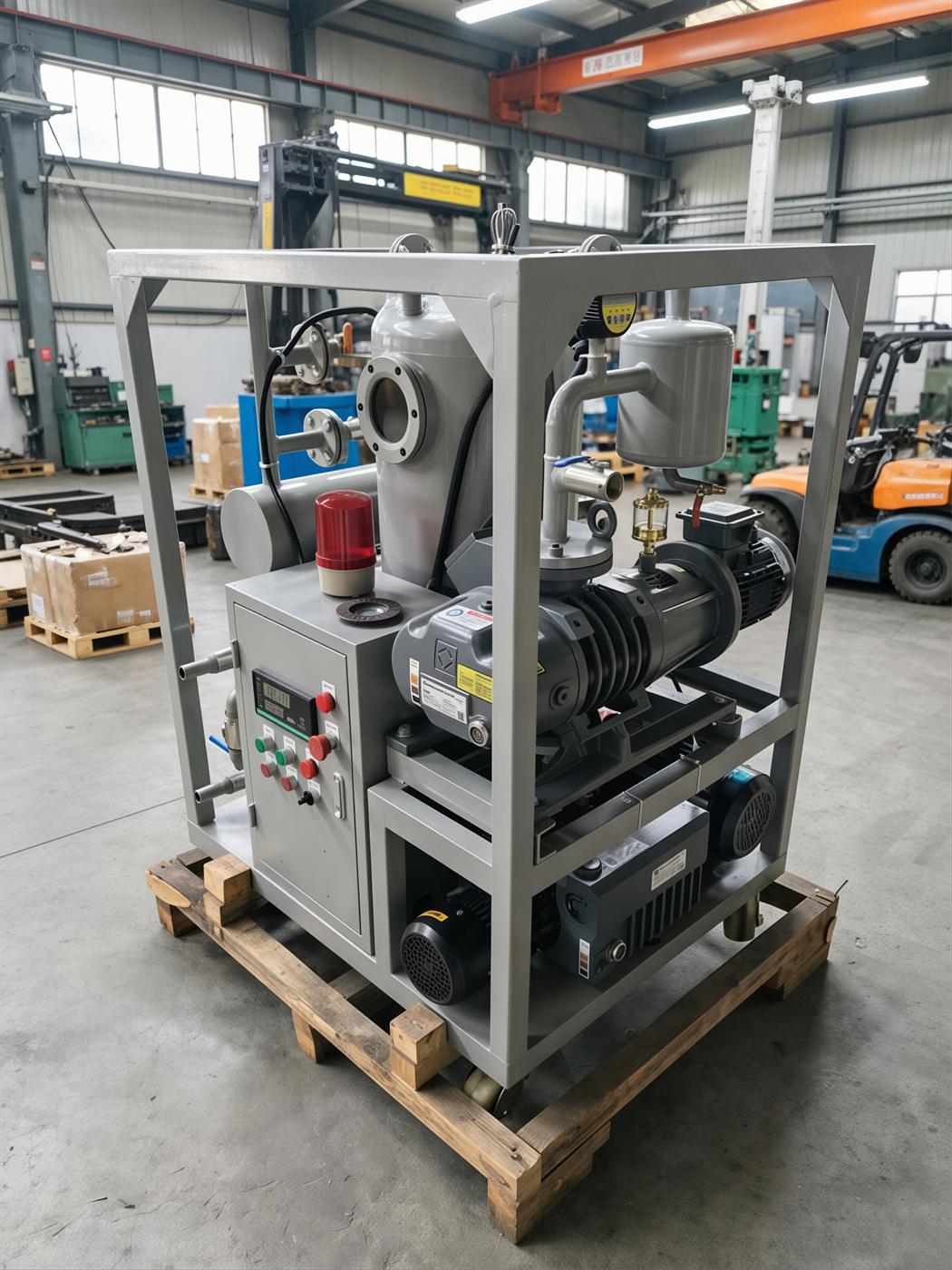

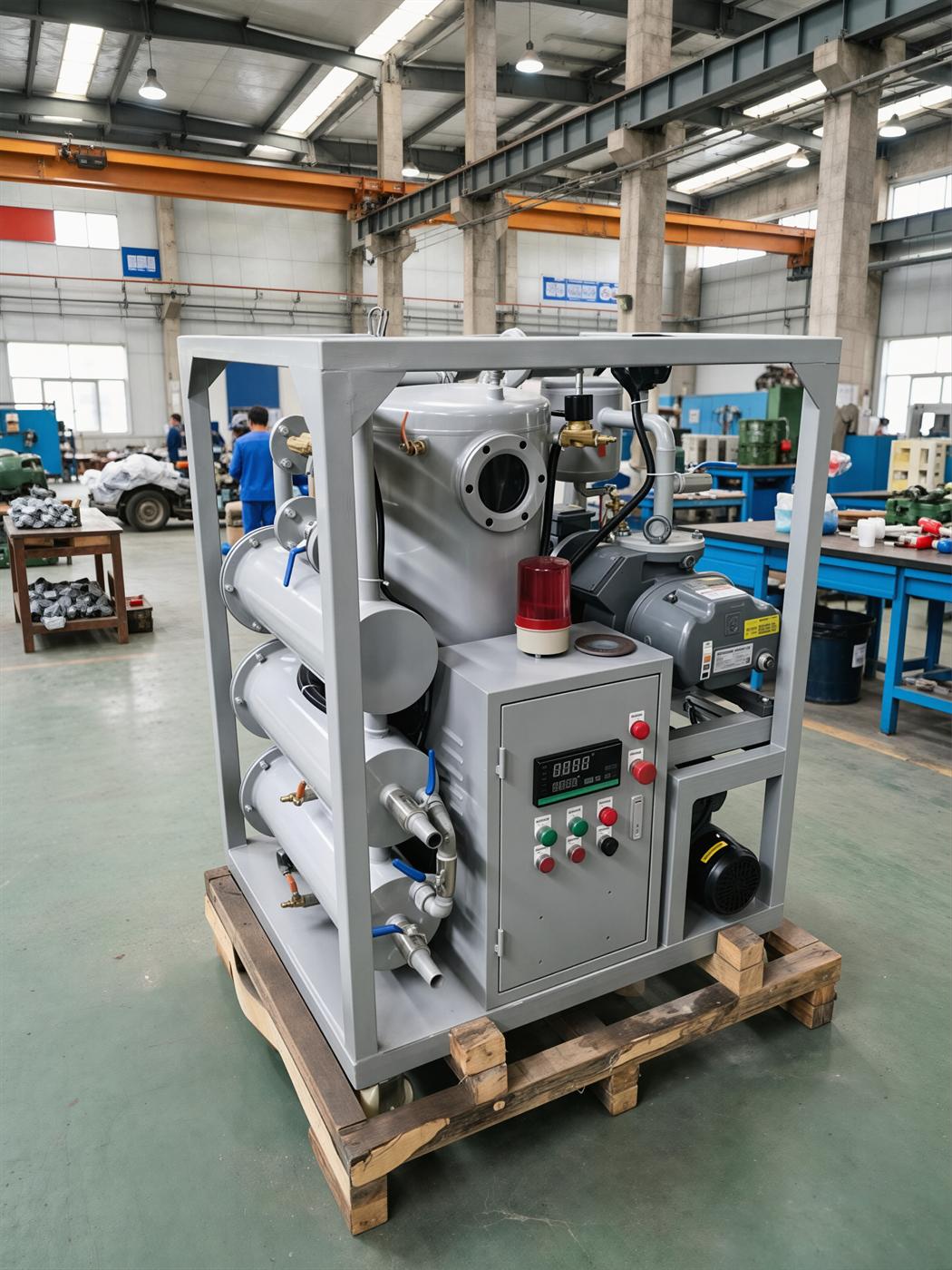

TYA-100 heated vacuum oil purifier
Increased processing capacity on the TYA platform, suited to the central oil stations of industrial and mining enterprises and to batch oil regeneration.
01Applications
Used for the central oil stations of industrial and mining enterprises and for batch oil regeneration. At 4000 L/h it meets workshop-level central processing needs, and suits scheduled batch processing and online maintenance of oil systems.
Industrial oils such as hydraulic oil, machine oil, cooling oil, lubricating oil and turbine oil.
Standard: high carbon steel; custom-built: 304 stainless steel
Processing capacity is scaled up from the TYA platform, and optional automatic backwash, heating control and remote communication modules can be added and combined to suit site requirements. The unit is derusted and powder coated, so it suits high temperature, high humidity and dusty environments.
02Overview
Increased processing capacity on the TYA platform, suited to the central oil stations of industrial and mining enterprises and to batch oil regeneration.
Each machine is designed and built to the company standard and goes through a no-load and a full-load run test before it leaves the works. The test record and the certificate of conformity travel with the machine. Yanneng can work out the right configuration and the treatment line from the oil analysis report and the site conditions you provide.
03Main features
04Technical data
| Flow rate | 4000 L/h |
|---|---|
| Working vacuum | approx. -0.08 MPa |
| Filtration accuracy | ≤1 ~ 5 μm |
| Water content | ≤3 ppm |
| Control mode | Automatic / semi-automatic |
| Power supply | Three-phase 380V / 50Hz |
| Dimensions | 1900 × 1000 × 1900 mm |
| Weight | approx. 720 kg |
The figures above are the reference values for the standard build. The actual configuration can be adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.
05Optional items
- Optional PLC intelligent control with touchscreen operation
- Optional online moisture detector
- Optional automatic backwash and remote communication modules
- The unit can be built as a mobile, stationary or trailer-mounted configuration
06Common questions
Operating ambient temperature -20–45 °C. The higher the altitude, the lower the negative value that the vacuum level can reach, so the room must be kept well ventilated and protected against moisture.
07Related models
Need a quotation, a delivery date or a custom build?
Tell us the conditions this machine has to work in - the oil type, the throughput, the power supply and where it will be installed - and we will come back within one working day with a configuration recommendation and a quotation.
