The figures below are the reference values for the standard build of this model. The actual configuration is adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.

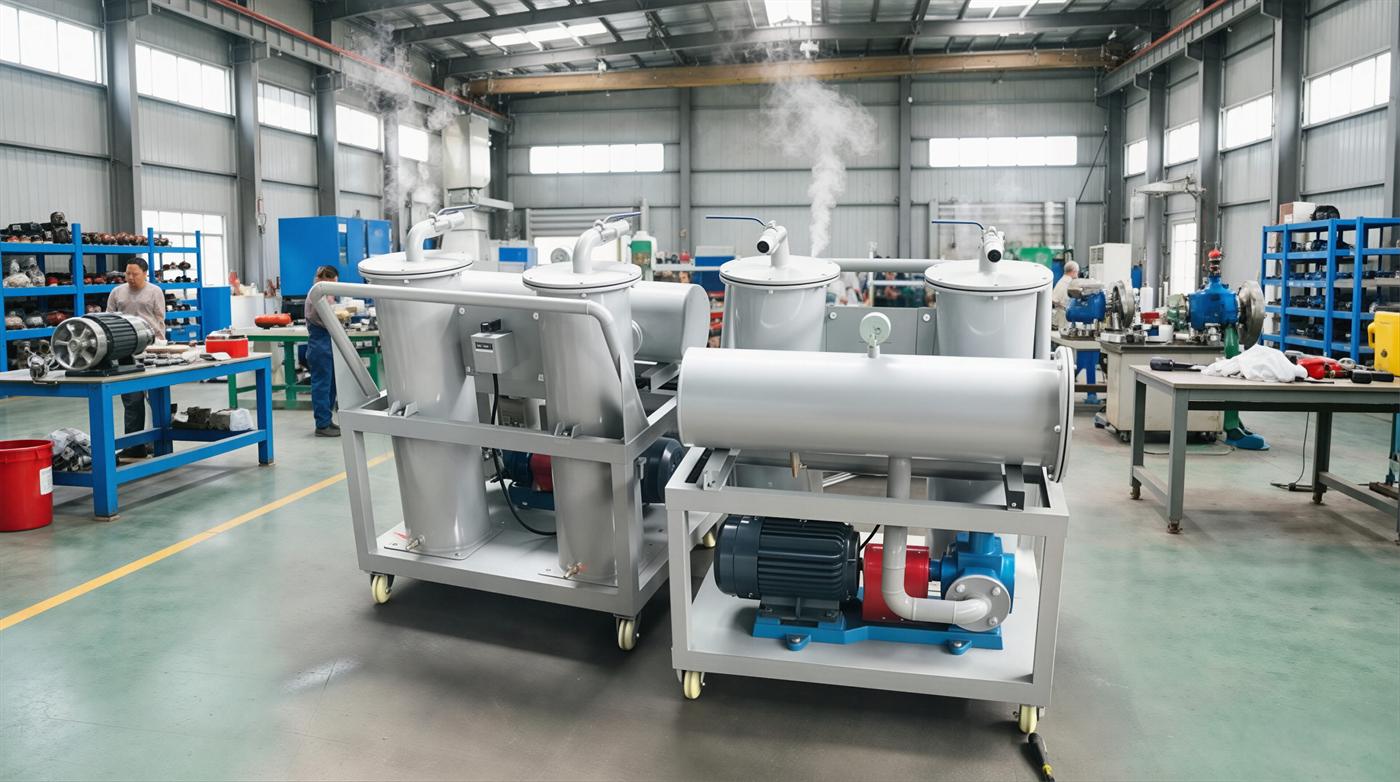

JL-50 portable filtering and oil-filling cart
A classic portable filtering and oil-filling cart that one person can push from place to place, and the best pre-filter partner for a vacuum oil purifier.
01Applications
Used in power plants, substations, power supply authorities, oil depots, metallurgy, chemical plants, railways, machinery and aviation, where it transfers liquid media such as machine oil, hydraulic oil, turbine oil, compressor oil and insulating oil, and at the same time filters out particulate contaminants, suspended solids, dust and rust.
Liquid media such as machine oil, hydraulic oil, turbine oil, compressor oil, insulating oil, heat transfer oil and diesel.
Standard: high carbon steel; custom-built: 304 stainless steel
A push-handle trailer frame; it filters out large particles above 20 μm so that downstream filter elements and pump sets are not blocked. It combines filtering with oil filling, and one person can push it to a new site.
02Overview
A classic portable filtering and oil-filling cart that one person can push from place to place, and the best pre-filter partner for a vacuum oil purifier.
Each machine is designed and built to the company standard and goes through a no-load and a full-load run test before it leaves the works. The test record and the certificate of conformity travel with the machine. Yanneng can work out the right configuration and the treatment line from the oil analysis report and the site conditions you provide.
03Main features
04Technical data
| Flow rate | 1000 L/h |
|---|---|
| Filtration accuracy | ≤10 ~ 25 μm |
| Structure | Push-handle trailer type |
| Power supply | Three-phase 380V / 50Hz |
| Weight | approx. 210 kg |
The figures above are the reference values for the standard build. The actual configuration can be adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.
05Optional items
- Can be designed and built with 1 ~ 7 filtration stages as required
- Explosion-proof design available for special operating environments
- Optional flow meter with a totalising function
06Common questions
If the oil to be treated contains too many contaminants, the filter elements will clog and the dehydration and degassing efficiency will drop. Pre-filtering thoroughly with JL first and then running the TYA vacuum degassing stage noticeably improves the purification result and extends machine life.
07Related models
Need a quotation, a delivery date or a custom build?
Tell us the conditions this machine has to work in - the oil type, the throughput, the power supply and where it will be installed - and we will come back within one working day with a configuration recommendation and a quotation.
