The figures below are the reference values for the standard build of this model. The actual configuration is adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.

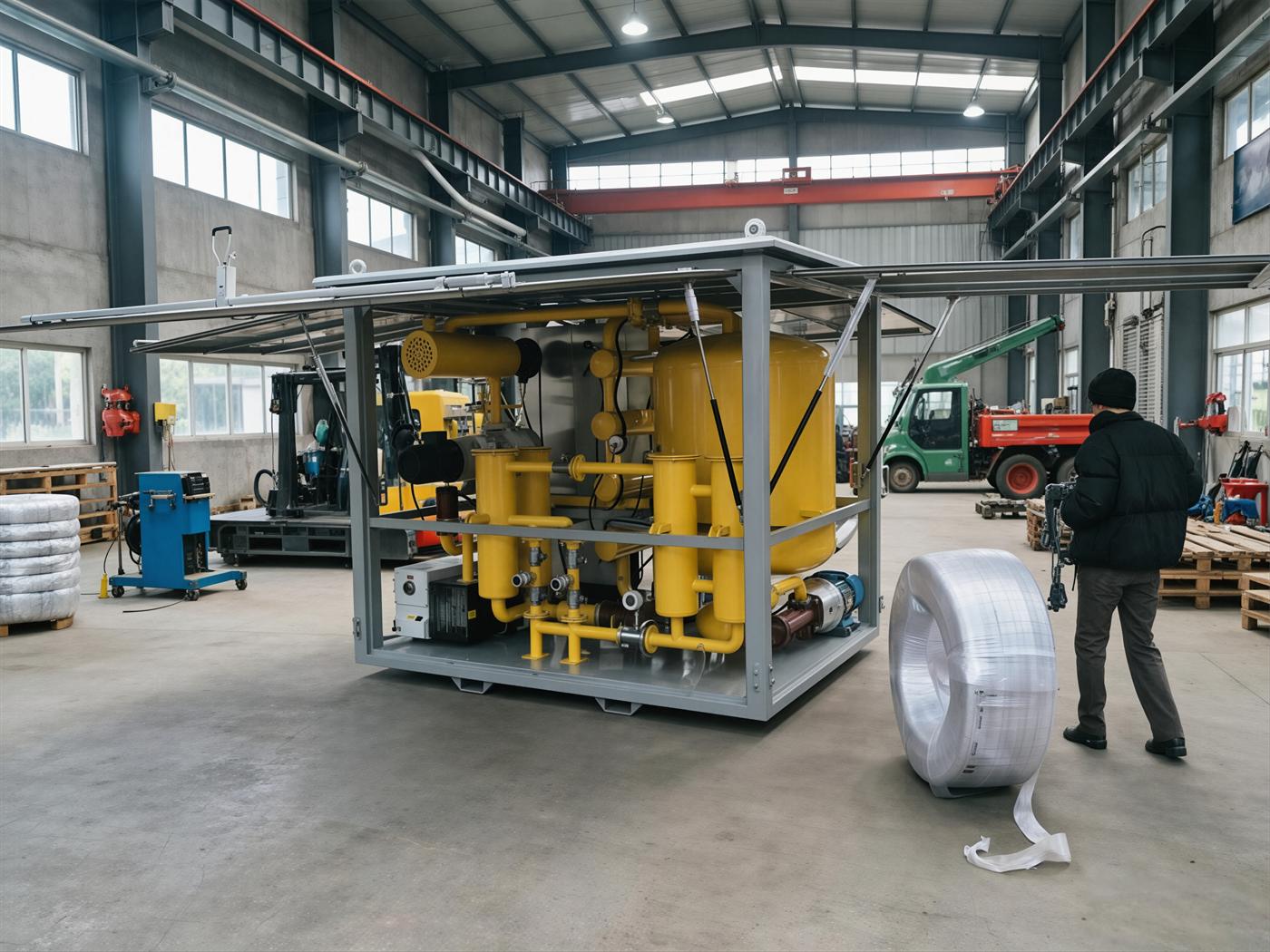

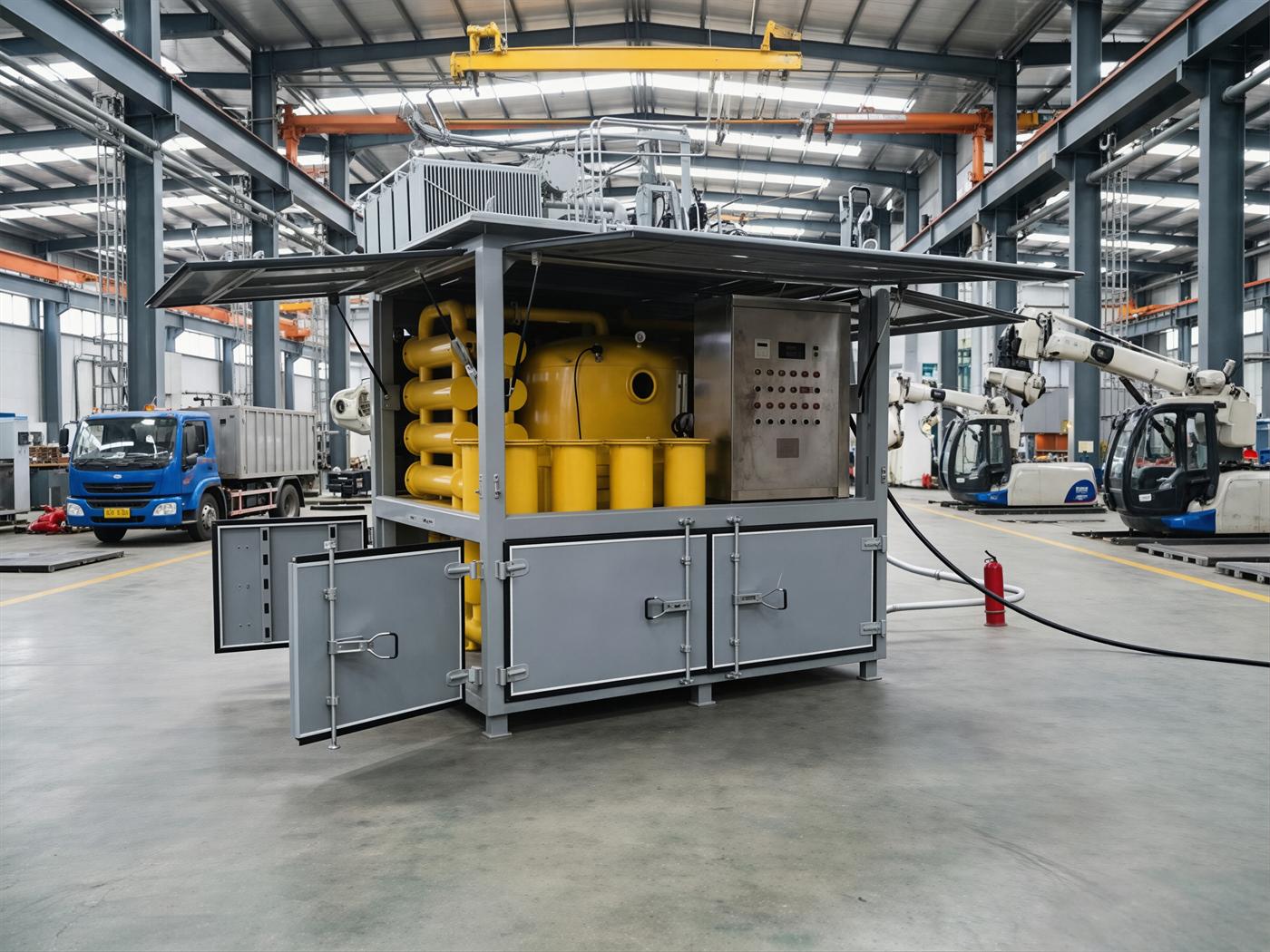

TL-100 adsorption oil purifier
Enlarged adsorption decolorizing unit. Used together with a vacuum unit, it restores both the colour and the cloudiness of the oil.
01Applications
For decolorizing and deodorizing old oil with a heavier contamination load. Normally used together with a vacuum unit to form a complete decolorizing and purification system, which suits large oil volumes where the appearance of the oil has to be restored in batches.
Old oils that are severely oxidised and blackened and that contain a burnt smell and gums.
Standard: high carbon steel; custom-made: 304 stainless steel
Activated carbon, silica gel and molecular sieve can be combined freely into 2~4 adsorption towers. The two chambers work in rotation, so the machine keeps running while the medium is replaced. It can receive oil from a vacuum unit to form a complete decolorizing and purification system.
02Overview
Enlarged adsorption decolorizing unit. Used together with a vacuum unit, it restores both the colour and the cloudiness of the oil.
Each machine is designed and built to the company standard and goes through a no-load and a full-load run test before it leaves the works. The test record and the certificate of conformity travel with the machine. Yanneng can work out the right configuration and the treatment line from the oil analysis report and the site conditions you provide.
03Main features
04Technical data
| Flow rate | 2400 L/h |
|---|---|
| Adsorption medium | activated carbon / silica gel / molecular sieve |
| Filtration accuracy | ≤3 ~ 10 μm |
| Power supply | three-phase 380V / 50Hz |
| Weight | approx. 760 kg |
The figures above are the reference values for the standard build. The actual configuration can be adjusted to the oil, the throughput and the power supply on site; the technical agreement signed by both sides is what counts.
05Optional items
- Heated adsorption mode with automatic temperature control available as an option
- Dual adsorption chambers working in rotation available as an option
- Online differential pressure monitoring and medium saturation alarm available as an option
06Common questions
This model is a purification unit for industrial oils. Where food or pharmaceutical applications are involved, the compliance of the medium and the cleaning validation requirements have to be confirmed separately. Please contact us to discuss the details.
Need a quotation, a delivery date or a custom build?
Tell us the conditions this machine has to work in - the oil type, the throughput, the power supply and where it will be installed - and we will come back within one working day with a configuration recommendation and a quotation.
